Color: Black
Bar Clamp Part Outer Diameter: 28.6mm
Type: MX-543
[Handlebar Size]
Width: 805mm
Height: 88mm
Rising: 61mm
Clamp Area Width: 205mm
Opening: 40mm
It is a large diameter bar (28.6 mm) which achieves high rigidity, flexibility, weight reduction at a high level.
It is produced under consistent management from research on shape and manufacturing method to manufacturing process.
It brings moderate " bend " without tapering it.
It adopts high strength aluminum alloy 7075 - T6, and it applies sand blasting to the surface.
It demonstrates high quality and safety by adopting wide range category of top riders.
It has an abundant line-up covering a wide range of categories such as Motocross, Enduro, Supermotard, 85cc.
It is with plastic bar end plug, SX bar pad.
•The tapered shape in which the handlebar diameter become thicker from the bar end part to the clamp part reponds more flexibility to vibration while maintaining the high rigidity. It arranged a laser printing process logo.
•It is equipped with standard plastic bar end plug that prevents sand and mud from entering.
•It is a SX bar pad standard equipment.
•The position grid that is possible for proper position adjustment is subjected to a laser painting.

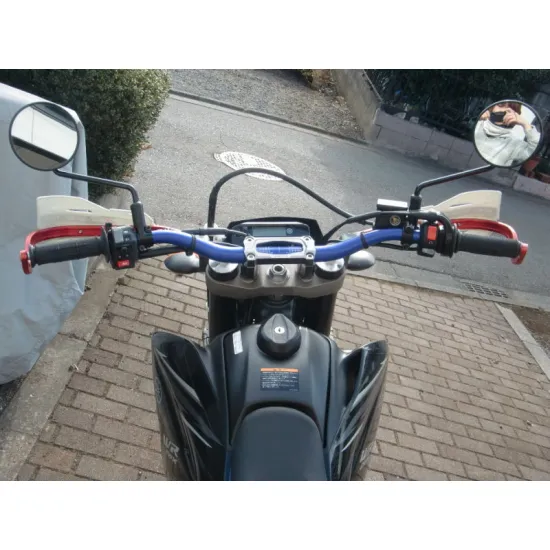

*About the installation of SX3 handlebar
SX3 handlebar is a large handlebar with a bar clamp part outer diameter of 28.6mm large diameter. It is necessary to correspond to a large diameter bar handlebar clamp when mounting (RENTHAL: twin wall bar/FATBAR, PROTAPER: CONTOUR HANDLEBAR).
It is necessary to replace with handlebar clamp kit that replaces all the top clamp or UX3.RX clamp kit that replaces only the handlebar clamp reasonably.
